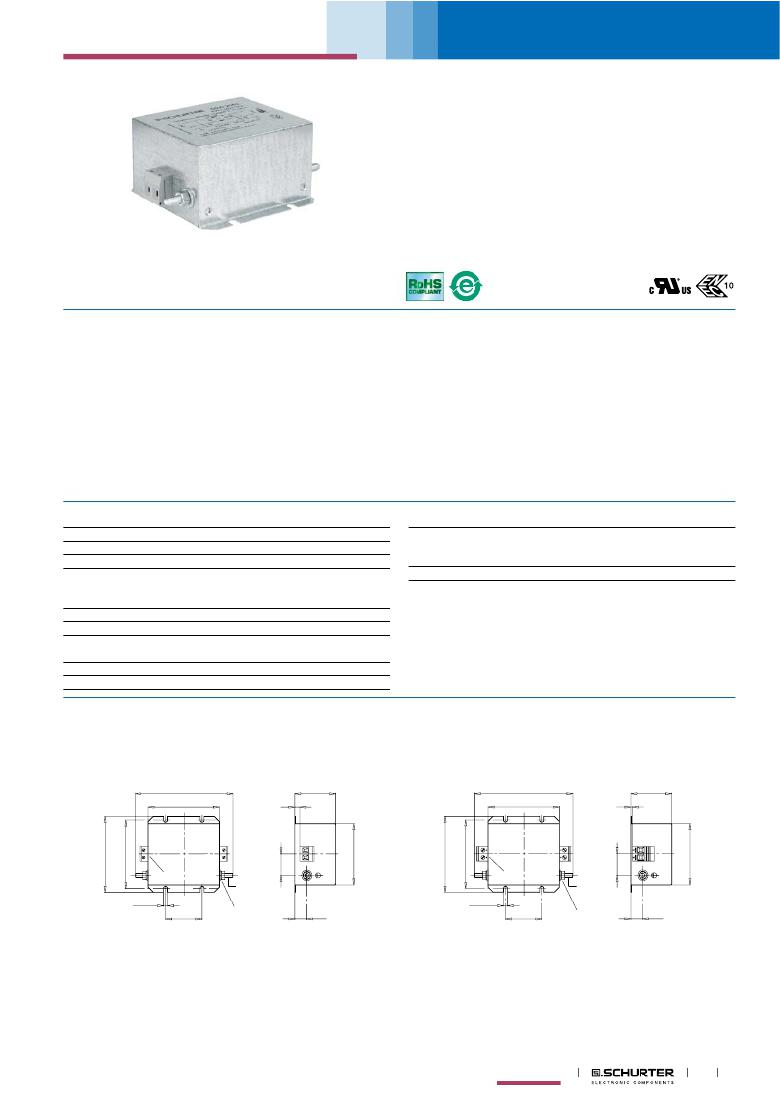

1-Phase Line Filters
www.schurter.com/PG84
AC Filter, Broad Band Attenuation
Description
- Chassis:
Screw-on mounting, from top
- Line-filter in standard version, 1?stage, high attenuation
- High symmetrical and asymmetrical attenuation in the frequency range
from 10kHz up to 30MHz
Approvals
- VDE Certificate Number: 40004673
- UL File Number: E72928
FMAB
Characteristics
- Designed for high current applications
- High attenuation at maximum resp. asymmetric load independent from
the line impedance
- Especially designed for industrial applications such as: Frequency Con-
verters, Stepper Motor Drives, UPS-Systems, Inverters
- Suitable for use in equipment according to IEC/UL 60950
References
Alternative: Standard version
Weblinks
pdf-datasheet , html-datasheet , General Product Information ,
Approvals , CE declaration of conformity , RoHS , CHINA-RoHS , e-Shop ,
SCHURTER-Stock-Check , Distributor-Stock-Check , Detailed request for
product
Technical Data
Ratings IEC
Ratings UL/CSA
Leakage Current
Dielectric Strength
12 - 50 A @ Ta 40 °C / 250 VAC; 50 Hz
12 - 50 A @ Ta 40 °C / 125 VAC; 60 Hz
industrial < 5.2 mA (250 V / 60 Hz)
> 1.7 kVDC between L-N
Line Filter
MTBF
Industrial Version, IEC 60939, UL 1283,
CSA C22.2 no. 8
Technical Details
> 200'000 h acc. to MIL-HB-217 F
> 2.7 kVDC between L/N-PE
Test voltage (2 sec)
Allowable Operation Temp.
Climatic Category
Protection Class
Terminal
Material: Housing
Dimension
Case 24-2
-25 °C to 100 °C
25/100/21 acc. to IEC 60068-1
Suitable for appliances with protection
class I acc. to IEC 61140
Screw
Metal
Case 24-6
1)
max. 137
max. 100
2)
(7)
max. 58
1)
max. 137
max. 100
2)
(2)
max. 58
4)
M6
4)
M6
5.3 ±0.3
51 ±0.3
3)
(17)
5.3 ±0.3
51 ±0.3
3)
(17)
1) Line
2) Load
3) Nut torque 3...4 Nm
4) I/O Connections torque 0.6...0.8
1) Line
2) Load
3) Nut torque 3...4 Nm
4) I/O Connections torque 1.5...1.8
Connectors
